the function and data of pins of TDA8839 integrated circuit

Published:2011/7/7 0:18:00 Author:chopper | Keyword: function, data, pins, integrated circuit | From:SeekIC

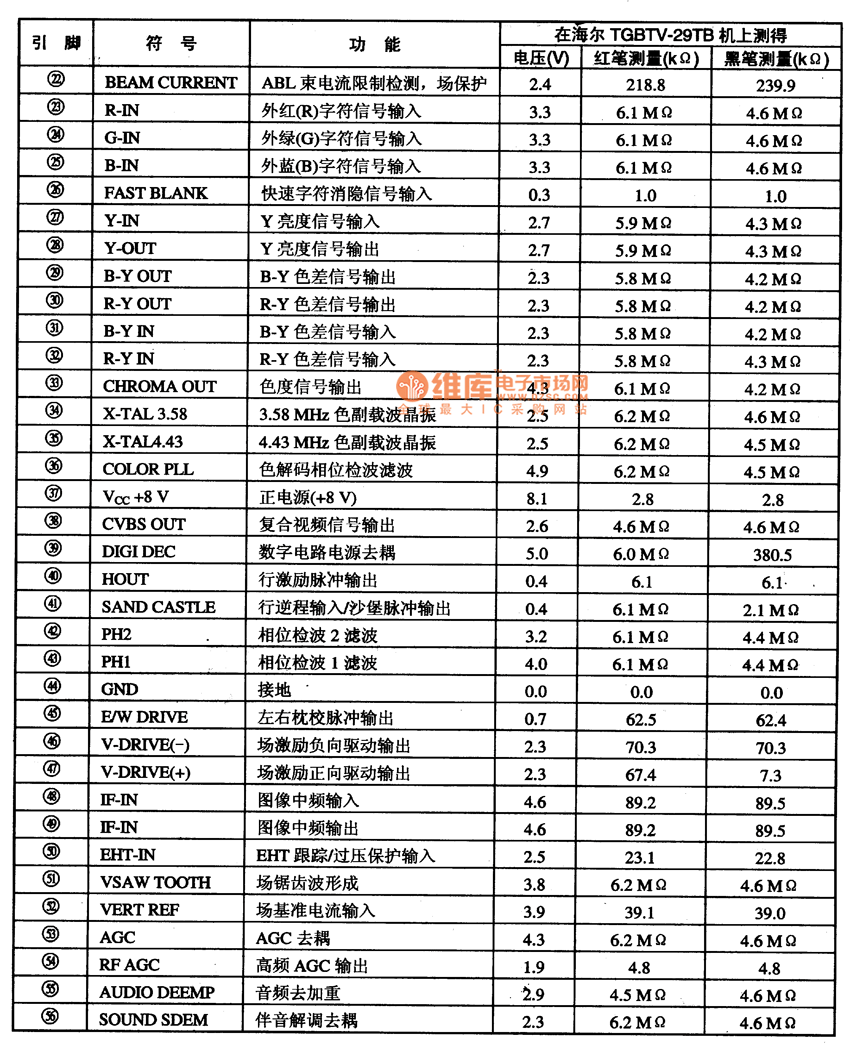

TDA8839--TV small signal processing monolithic integrated circuitTDA8839 is a TV small signal processing monolithic integrated circuit produced by Company Phillips,and it is applied to homemade and import large-screen color TVs.1.Function characteristics TDA8839 integrated circuit includes image and sound intermediate frequency signal processing circuit, small signal line scanning circuit,luminance and chrominance signal processing circuit, and other auxiliary function circuits.2.function and data of pinsTDA8839 adopts dual inline 56 pinned package.and its function and data of pins of the IC are shown as chart 58.
