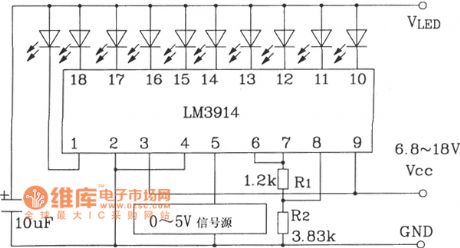

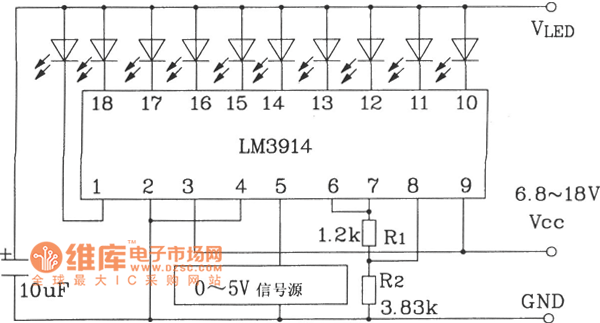

0 ~ 5V line graph indicator circuit diagram

Published:2011/5/5 4:04:00 Author:Ecco | Keyword: 0 ~ 5V , line graph, indicator | From:SeekIC

0 ~ 5V line graph indicator circuit composed of LM3914 series of point / line LED display driver integrated circuit. LM3914LED display driver IC is widely used, the external components and wiring changes may constitute a variety of display and alarm circuits, cascade using may constitute a multi-level LED display.
