100_W_AT_50_KC

Published:2009/7/15 4:00:00 Author:Jessie | From:SeekIC

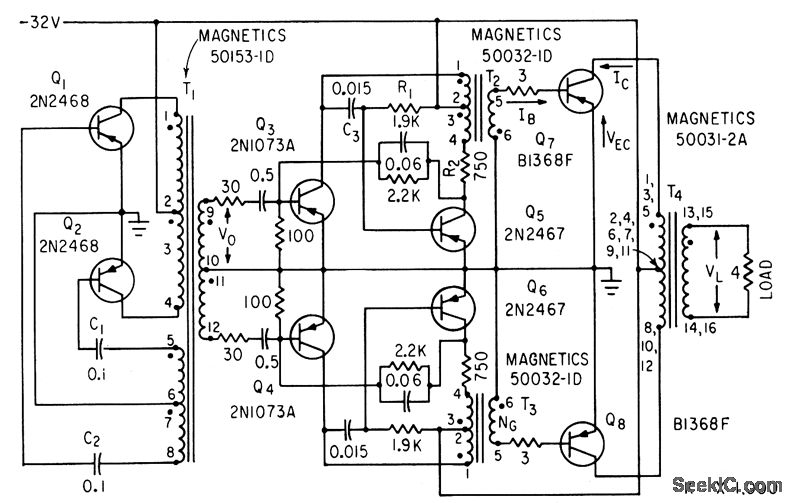

Square-wave oscillator Q1-Q2 drives monostable gates Q3-Q5 and Q4-Q6 in parallel, and gates in turn drive push-pull amplifier using 25-amp transistorsQ7-08 lo deliver 100 w to load al 50 kc with overall efficiency of 70%.-S. L. Chin, New Circuit Design Raises Inverter Frequency Limits, Electronics, 35:43, p 59-60.
