1,024 bits CCD drive circuit

Published:2011/3/21 0:38:00 Author:muriel | Keyword: 1,024 bits, CCD drive circuit | From:SeekIC

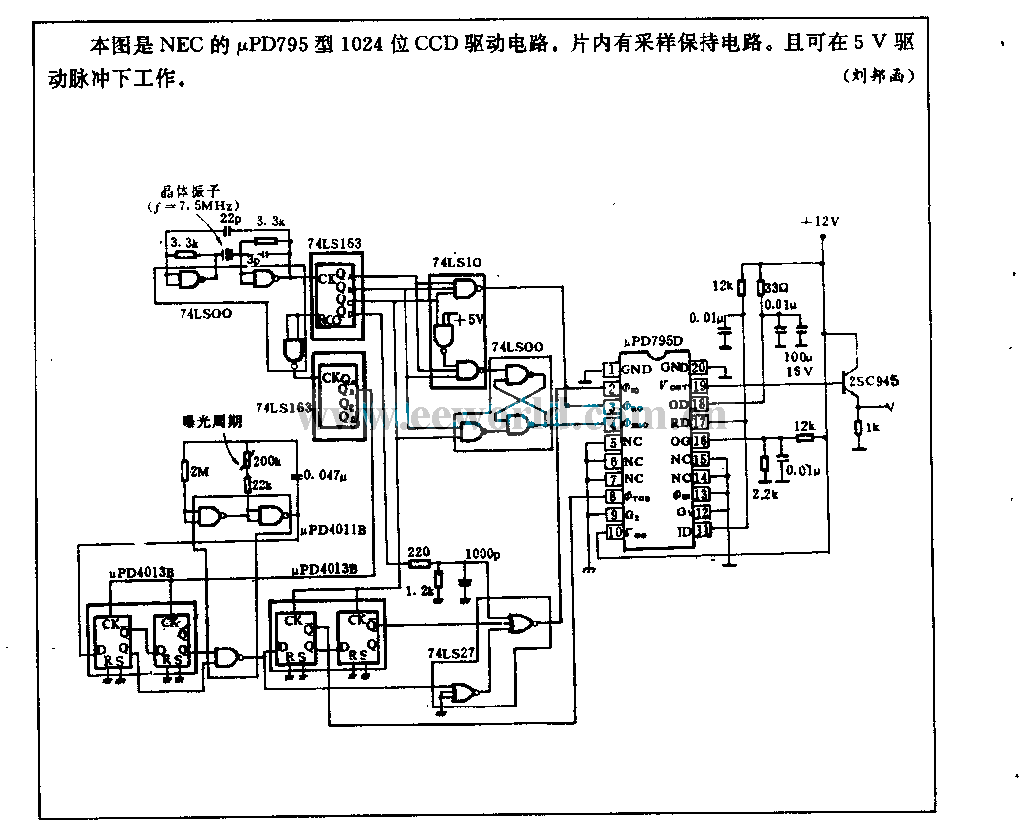

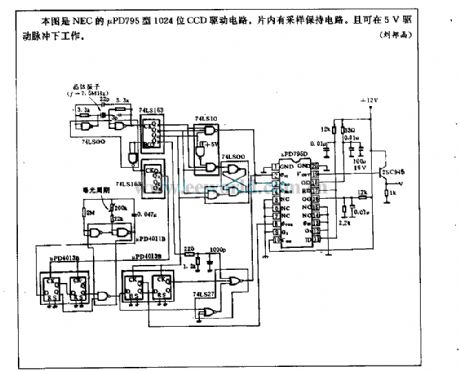

This figure is NEC's uPD795 type 1024bits CCD drive circuit,In the chip hassample hold circuit. And can work at 5V drive pulse.
