10Mb optical data circuit

Published:2011/4/18 2:33:00 Author:muriel | Keyword: 10Mb, optical data circuit | From:SeekIC

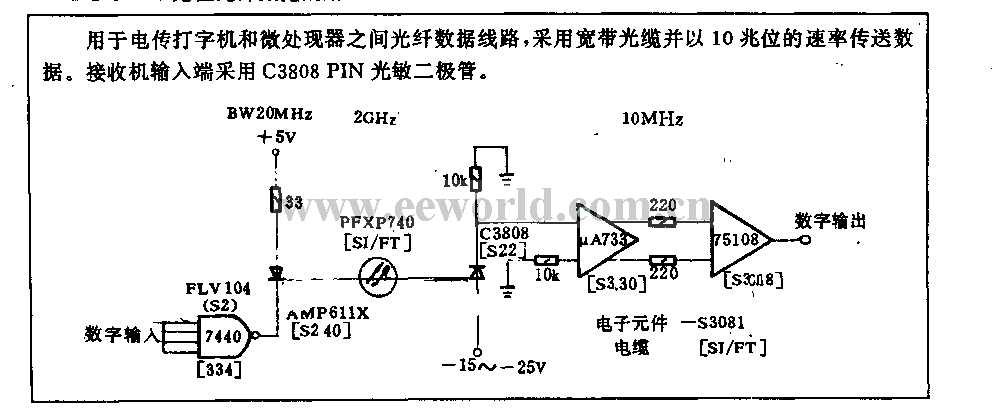

The optical data circuit is used for between teletypewriter and micro place view device, it uses the broadband fiber optic to transmit dataat the rate of 10Mb. Receiver input end use C3808 PIN photosensitive diode.
