12v Battery Load Cutout Circuit -- August 23, 2009

Published:2012/9/9 21:08:00 Author:Ecco | Keyword: 12v, Battery Load, Cutout Circuit | From:SeekIC

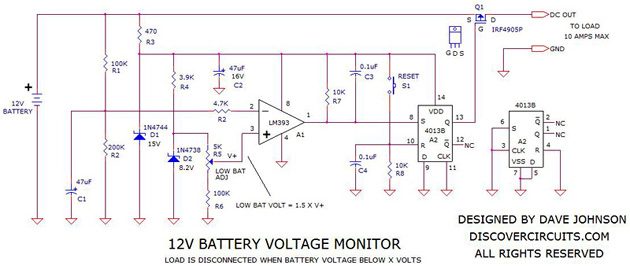

Lead-acid batteries should not be discharged below a certain point if they are to last. Also, you don?t want certain 12v powered devices, which might be plugged into a car?s cigarette lighter outlet, to drain the car battery down to a point where the car?s engine will not start. To prevent battery damage or a dead battery, the circuit below disconnects a load from the battery when the voltage dips below a fixed but adjustable voltage and will not reconnect the load until a reset button is pressed. To keep the whole circuit efficient and compact, a medium current rated p-channel FET forms the power switch. A 8.2v zener diode forms the voltage reference while a second 15v zener diode acts as a transient voltage protector. Source: discovercircuits
