2-10 system decoding circuit

Published:2011/12/1 20:30:00 Author:May | Keyword: 2-10 system, decoding | From:SeekIC

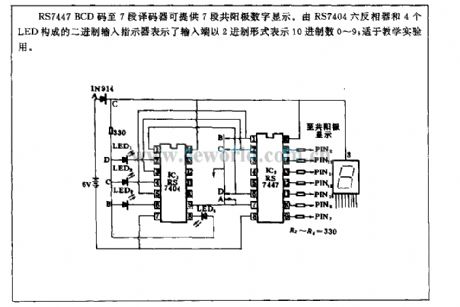

RS7447 BCD code to seven-segment decoder can provide seven segment common anode digisplay. Binary system input pointer consists of RS7404 six inverter and four LED. It shows that input end uses binary system form to express ten's digit. It is suited to teach experiment.
