2_KV_MODULE_OF_MAGNETRON_MODULATOR

Published:2009/7/21 0:02:00 Author:Jessie | From:SeekIC

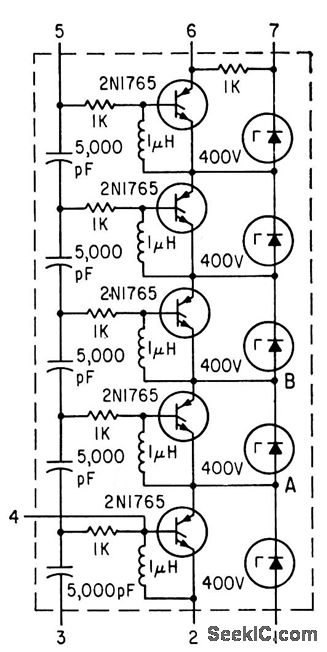

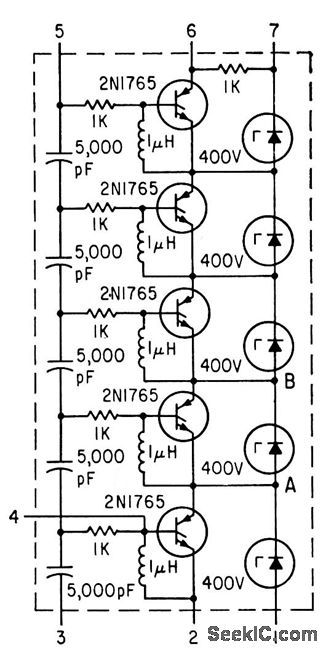

With terminal 6 at +2,000 v, voltage-regulator diodes maintain 400 v across each pnpn transistor. Lowest transistor receives 0.5.amp, 3-v trigger at its gate.-F. A. Gateka and M. L. Embree, Semiconductor Modulators for Modern Magnetrons, Electronics, 35:37, p 42-45.
