3_WIRE_RECEIVER_MESSAGE_DEMUXER

Published:2009/7/10 3:05:00 Author:May | From:SeekIC

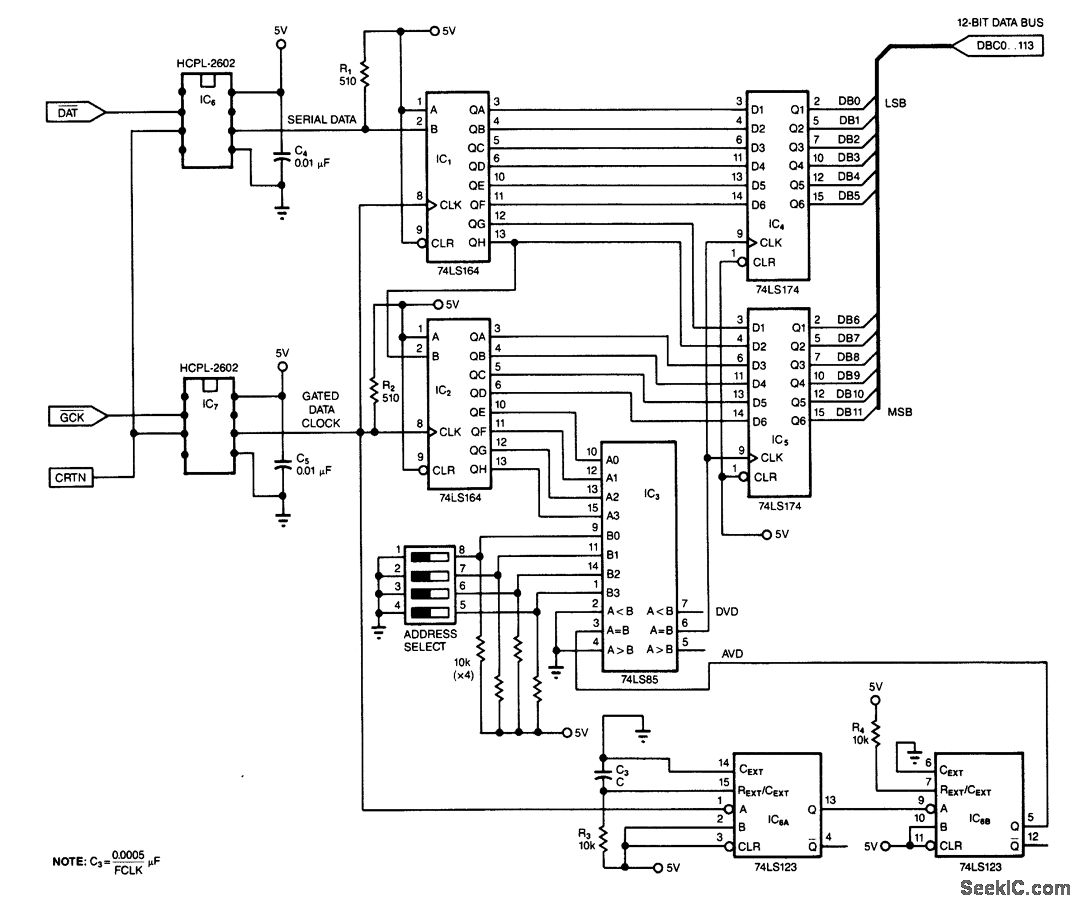

This 3-wire receiver checks the first four data bits of 16 received bits against a preset address. If the two match, the remaining 12 bits are latched into two 6-bit flip-flop registers. Either CMOS or TTL logic families can be used in the design.
