450_MC_TO_105_MC_WITH_2N2996

Published:2009/7/13 5:02:00 Author:May | From:SeekIC

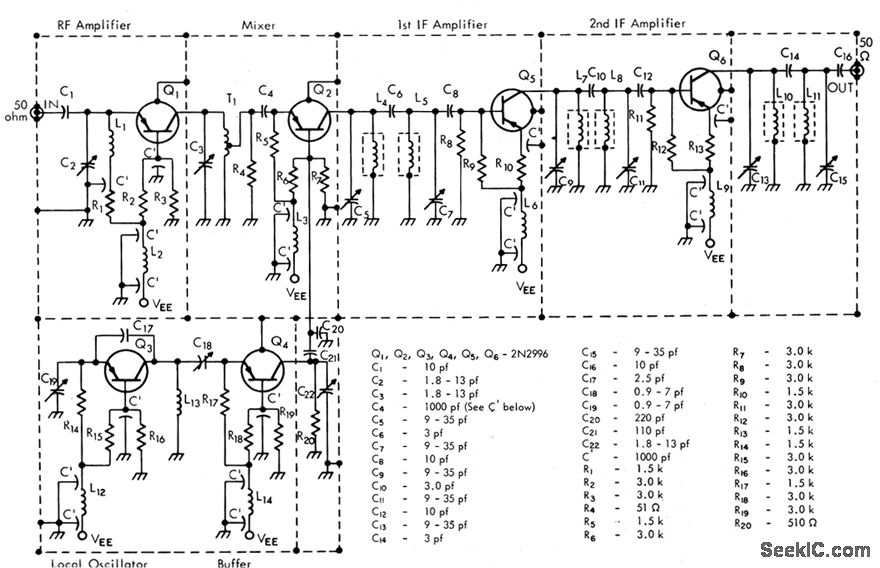

Local Colpitts oscillator operates at 345 Mc; it can deliver 5mw, but only 1 mw is required by oscillator-stabilizing buffer for good mixing action. R-f stage ahead of converter provides power gain of 13 db at noise figure of only 5.9 db.-Texas Instruments Inc. Solid-State Communications, McGraw-Hill, N.Y.1966, p305.
