455_kHz_CASCODE_IF

Published:2009/7/8 3:35:00 Author:May | From:SeekIC

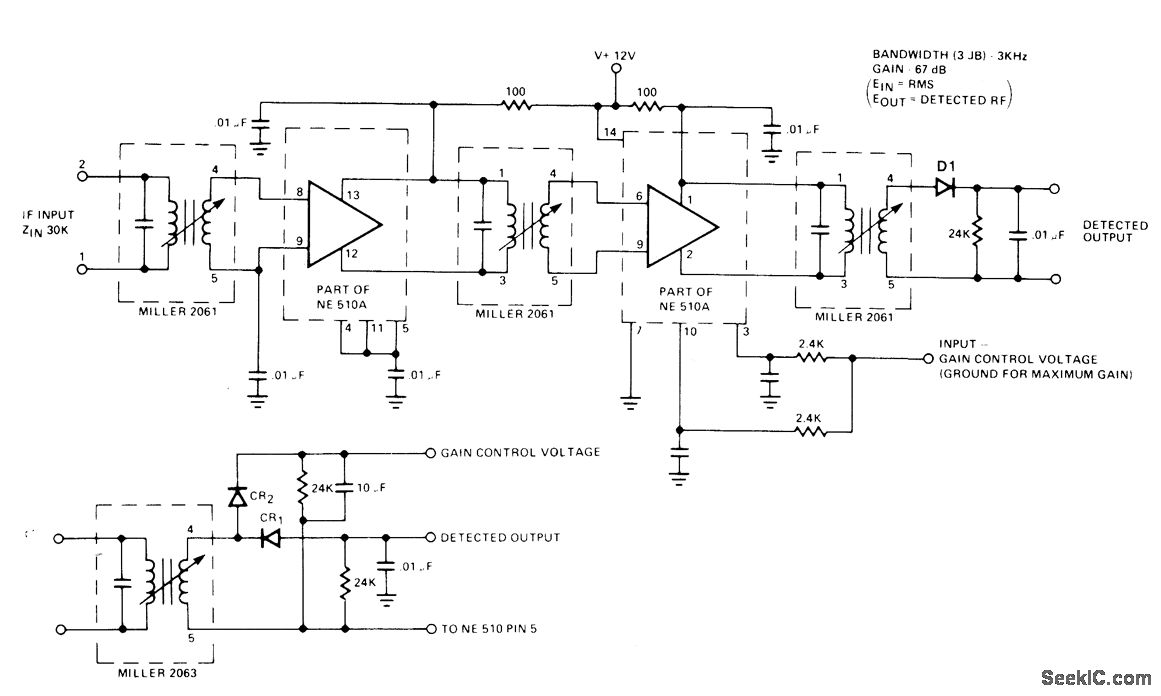

Sections of Signetics NE510A transistor array serve as active elements for IF strip using standard transformers.Voltage gain is 66 dB when gain-control input is grounded. Altemate detector connection for including AGC is shown below.- Signetics Analog Data Manual, Signetics, Sunnyvale, CA, 1977, p 746-747.
