4_46_MHz_TUNABLE

Published:2009/7/6 0:57:00 Author:May | From:SeekIC

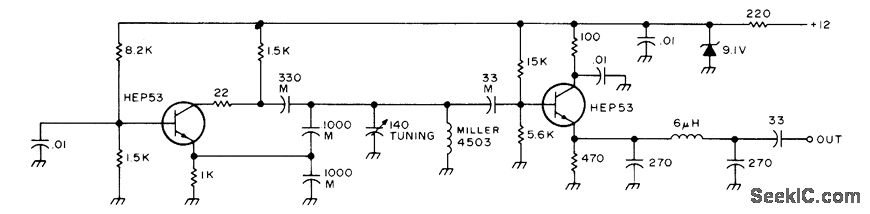

Emitter-follower buffer stage for isolation has low-pass filter for reducing harmonic output and giving better sine-wave output. Oscillator coil should be in shield at least twice coil diameter.-An Accessory VFO-the Easy Way, 73 Magazine, Aug. 1975, p 103 and 106－108.
