4 Lane - Automatic Reset - Race Scorer

Published:2013/6/18 20:52:00 Author:muriel | Keyword: 4 Lane, Automatic Reset, Race Scorer | From:SeekIC

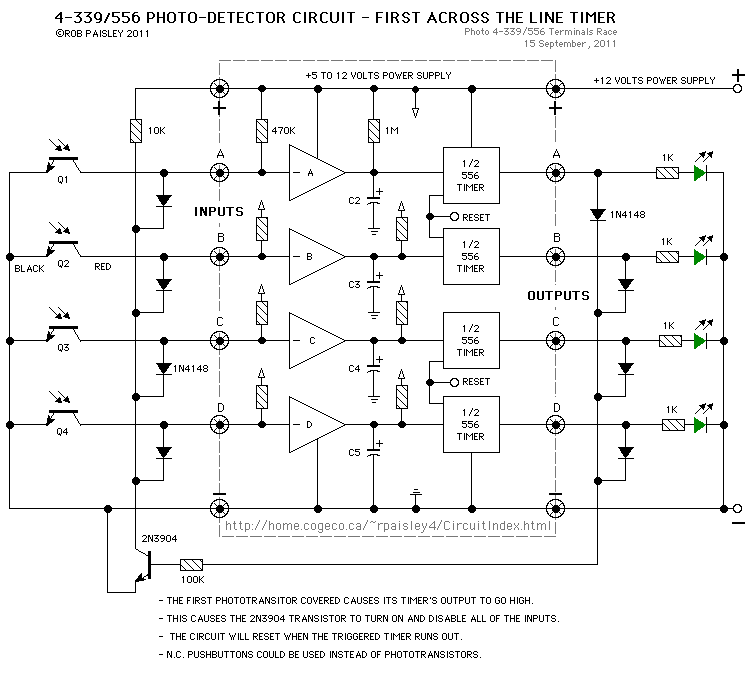

The next circuit will score 4 lanes and has automatic reset. The schematic shows four lanes but two, three of two sets of two lanes could be scored. The variable 500K resistors shown in the first two circuits could be replaced by a fixed 470K resistor.
