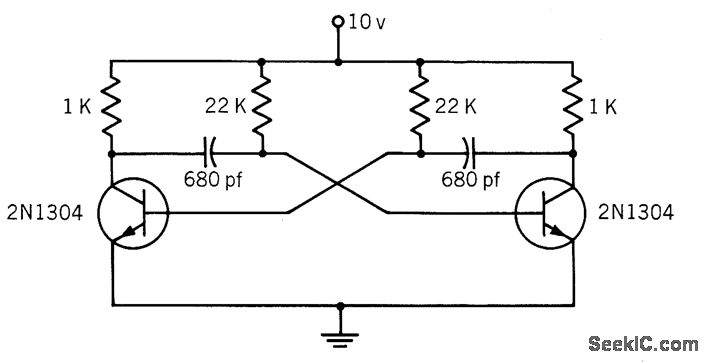

50_KC_FREE_RUNNING_MVBR

Published:2009/7/16 11:55:00 Author:Jessie | From:SeekIC

Uses 2N1304 transistors having base-emitter breakdown of -25 V, making emitter diodes unnecessary.-Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 380.
