5G0401 acoustic synchronous flash with disco drum music circuit diagram

Published:2014/3/13 2:47:00 Author:lynne | Keyword: 5G0401 acoustic synchronous flash with disco drum music circuit diagram, 5G0401 | From:SeekIC

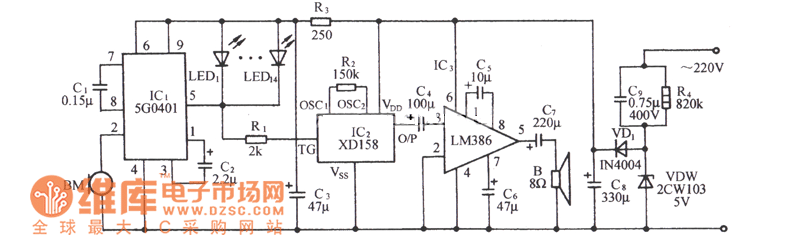

Circuit shown in Figure, which includes voice-activated flash circuit, drum music sound circuit and audio amplifier circuit and buck rectifier circuit. 5G0401 is the voice flash drive ASIC.
