60_MHz_WITH_80_dB_POWER_GAIN

Published:2009/7/8 3:32:00 Author:May | From:SeekIC

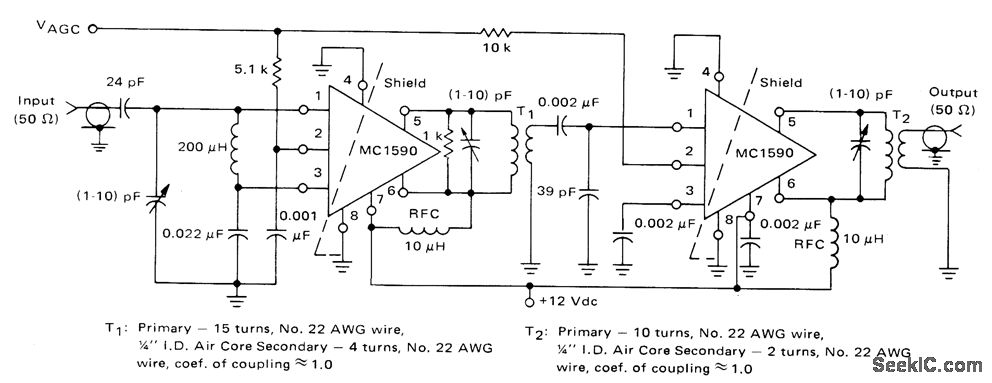

T-stage tuned IF ampIifier achIeves maximum gain and output signal swing capability by using differential-mode coupling for interstage and output network Overall bandwidth is 1.5 MHz Resistors in series with AGC pins 2 of opamp stages provide more efficient AGC action,－B.Trout,''A High Gain Integrated Circuit RF-IF Amplifier with Wide Range AGC.''Motorola,Phoenix,AZ.1975,an-513,p 8.
