6_METER_PREAMP

Published:2009/7/15 23:01:00 Author:Jessie | From:SeekIC

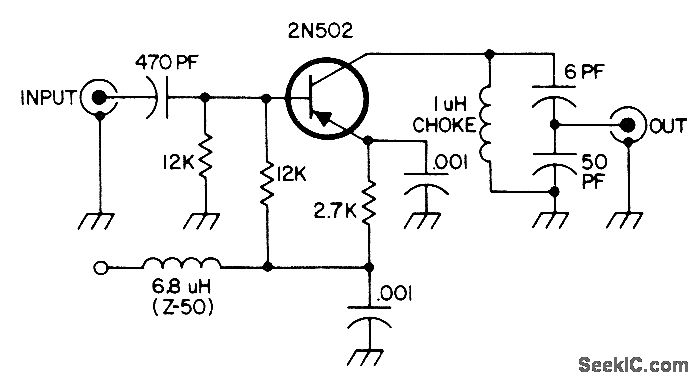

Simple transistor circuit requires no tuning, draws less than 50mW from 9-V supply, and increases sensitivity of low-priced receiver without complicated impedance matching.-E. R. Davisson, Simple Six Pre-Amp, 73Magazine, Oct. 1974, p 111-112.
