74 series digital circuit 74LS538 3-8 line demultiplexe(three states)

Published:2011/5/9 22:32:00 Author:Nicole | Keyword: 74 series, demultiplexe | From:SeekIC

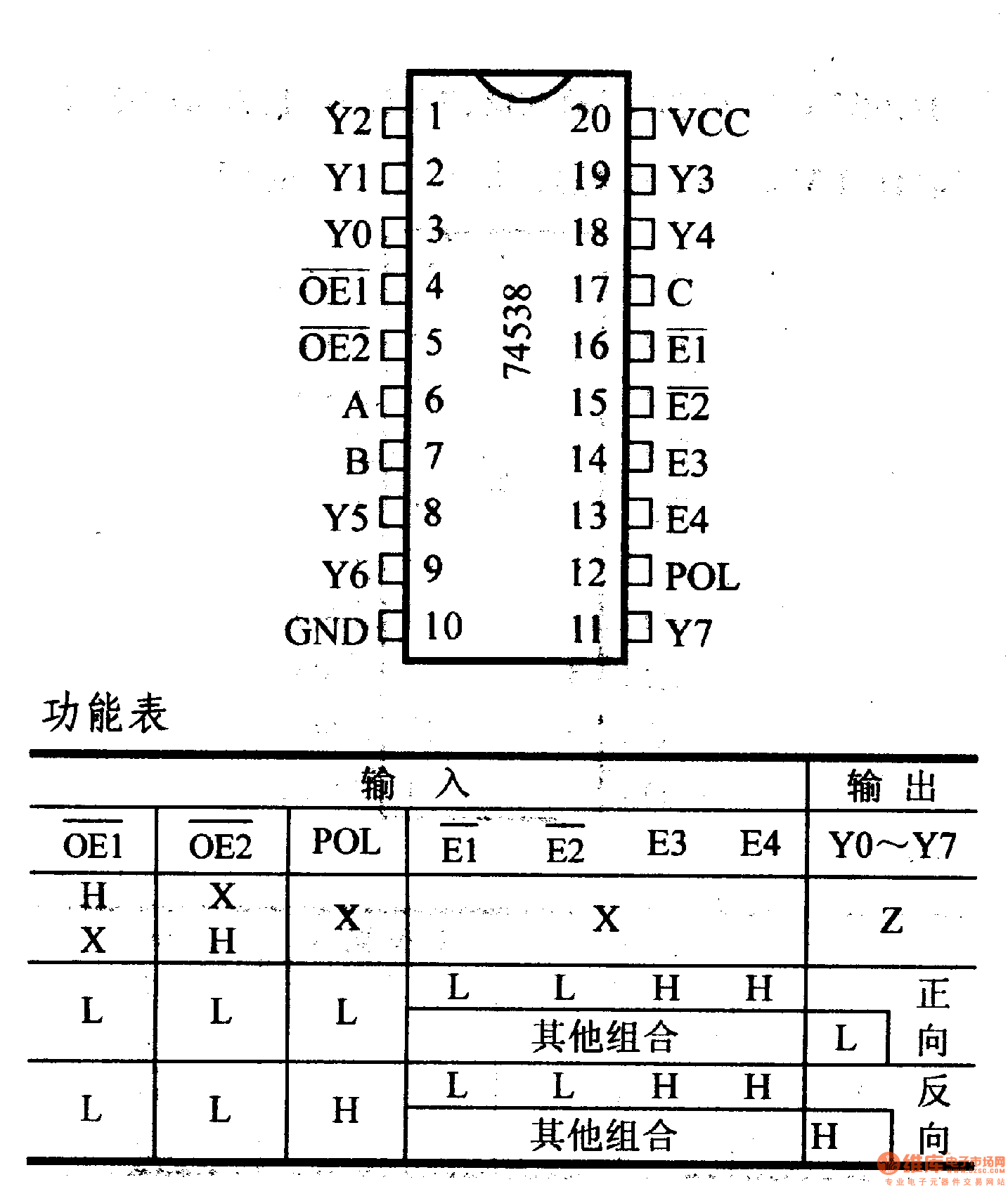

74LS538, 74F538, 3-8 line demultiplexe(three states) It can switch the positive output or negative output; it has three states output.
