900w full-wave circuit diagram

Published:2011/7/21 3:07:00 Author:Ecco | Keyword: 900w full-wave | From:SeekIC

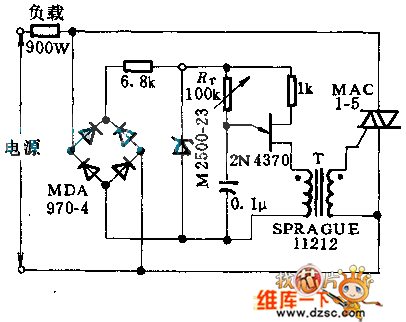

This circuitry is composed ofbidirectional triode thyristor controlled silicon delivered by unijunction transistor striking on rocks and bridge rectifier. It can provide wide range of control to resistive load by RT. The pulse transformer T makes bidirectional Hiccup controlled silicon polar and unijunction transistor steady - state current be separated.
