AC_COUPLED_JFET_

Published:2009/7/10 4:19:00 Author:May | From:SeekIC

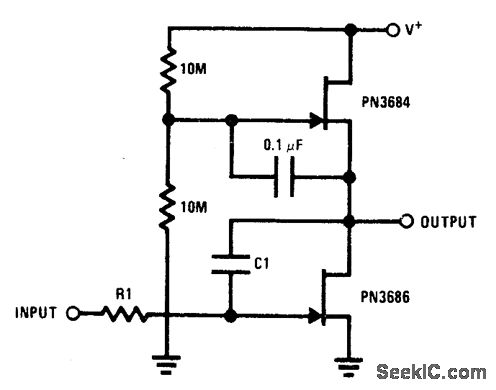

Use of C1 as Miller integrator or capacitance multiplier allows simple circuit to handle very long time constant while providing high voltage gain. Circuit also offers low distortion with low noise and high dynamic range.- FET Databook, National Semiconductor, Santa Clara, CA, 1977, p 6-26.
