AD532 Squarer Circuit

Published:2012/9/3 1:49:00 Author:Ecco | Keyword: Squarer | From:SeekIC

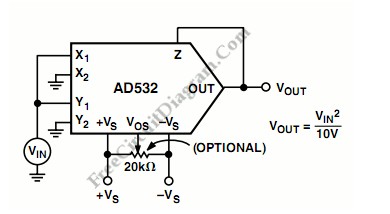

Source:freecircuitdiagram Thefollowingschematicdiagramshowsasquaringcircuit.Basically,thiscircuitisasimplevariationofmultipliercircuit.However,thedifferentialinputcapabilityoftheAD532canbeusedtoobtainapositiveornegativeoutputresponsetotheinput.Thiscircuithasusefulfeaturewhichissuitableforcontrolapplications,asitmighteliminatetheneedforanadditionalinvertersomewhereelse.
