AN5026K infrared remote control signal receiving integrated circuit

Published:2011/6/30 6:39:00 Author:Christina | Keyword: infrared, remote control signal, receiving integrated circuit | From:SeekIC

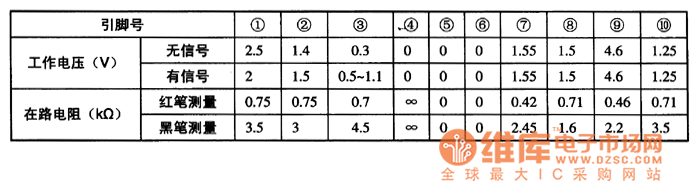

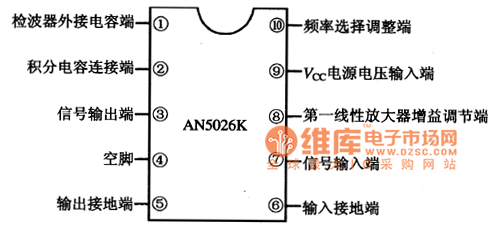

The AN5026K infrared remote control signal receiving integrated circuit is produced by the Panasonic company that can be used in all kinds of electronic products' remote control systems such as the remote control fans, air conditioners, acoustics, TVs, DVD players.etc. 1.Features The AN5026K is composed of the preamplifier circuit, the bandpass filter circuit, the automatic level control circuit, the wave detection circuit and the buffer amplification circuit. 2.Pin functions and data The AN5026K uses the 10-pin dual-row DIP package, the pin functions and data are as shown in figure 1, the operating parameters are as shown in table 1. Figure 1 The pin functions and data of the AN5026K Table 1 The operating parameters of the AN5026K
