AN6367NS chrominance signal processing integrated circuit

Published:2011/6/29 1:18:00 Author:Christina | Keyword: chrominance signal, processing integrated circuit | From:SeekIC

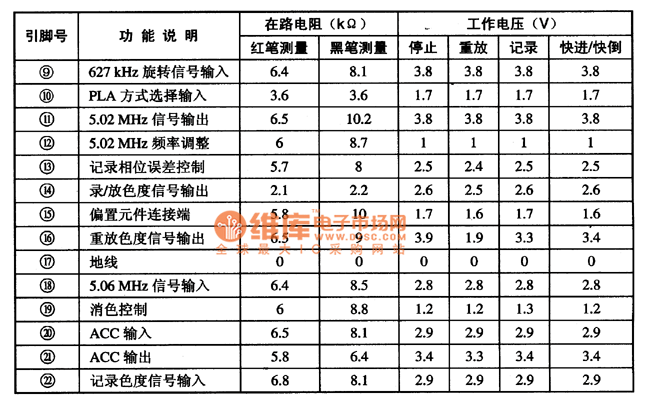

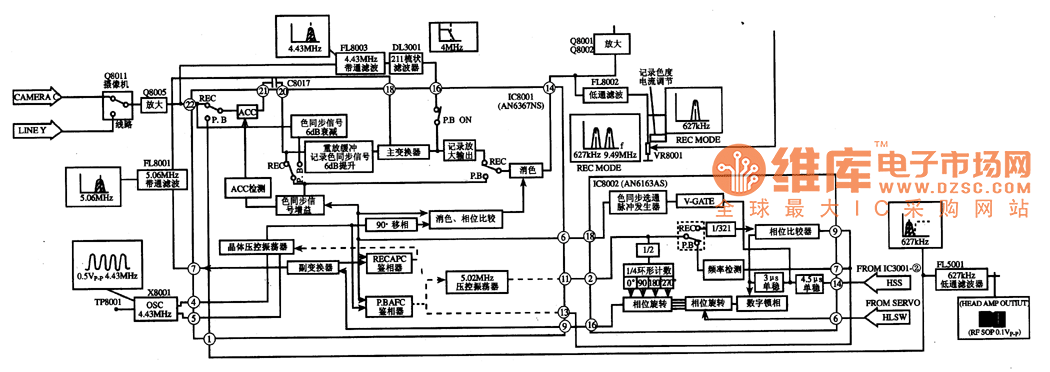

The AN6367NS chrominance signal processing integrated circuit is produced by the Panasonic company that can be used in the Panasonic NV-M series cameras. 1.Features The internal main function of the AN6367NS is to produce the 5.06MHz signal by the vice converter, and supply the record and playback chromaticity signal transformation for the main converter, also it has the automatic frequency phase control function during the recording. The internal circuit block diagram of the AN6367NS is as shown in figure 1. 2.Pin functions and data The AN6367NS is in the 22-pin dual-row plastic structure, the pin functions and data are as shown in table 1. Table 1 The pin functions and data of the AN6367NS 3.The typical application circuit The typical application circuit of the AN6367NS is as shown in figure 1. Figure 1 The typical application circuit of the AN6367NS
