5_TO_33_V_SURFACE_MOUNT_SWITCHING_REGULATOR

Published:2009/6/24 5:29:00 Author:May | From:SeekIC

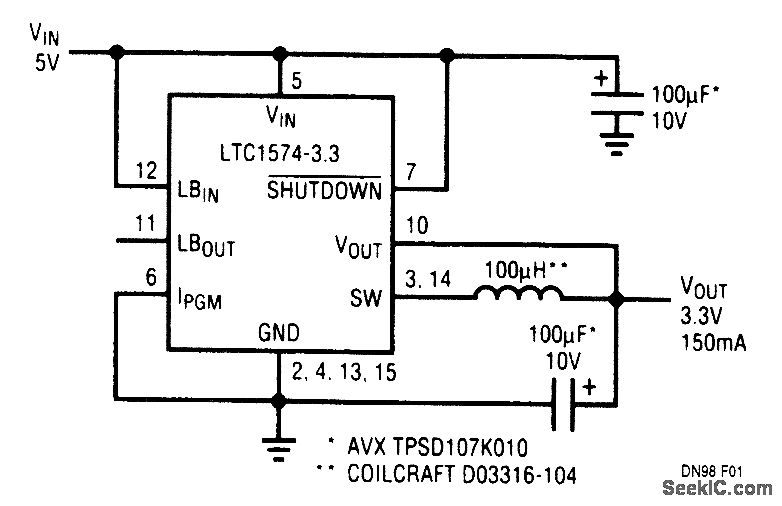

This converter provides 3.3 V at 150 mA from an input voltage of 5 V. Peak inductor current is limited to 340 mA by connecting pin 6 (IPGM) to ground. For applications requiring higher output current, connect pin 6 to Vin. Under this condition, the maximum load current is increased to 425 mA.
