ADJUSTABLE_BIAS_REGULATOR

Published:2009/6/24 2:59:00 Author:Jessie | From:SeekIC

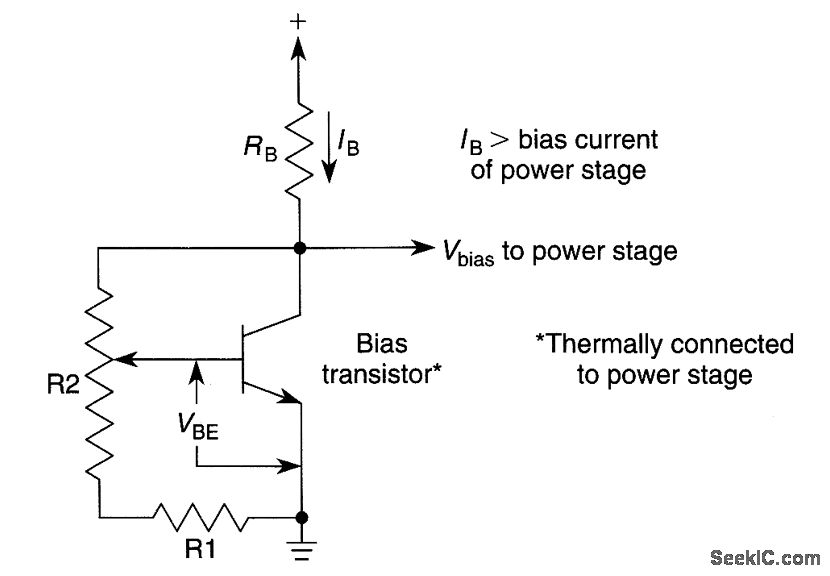

If the wiper of R2 is set at N% rotation，the bias voltage Will be∶This method derives a bias voltage that tracks VBE of this bias transistor. If the bias transistor is thermally linked to the power stage, tracking over a wide temperature range will result.
