ANALOG_VARIABLE_MULTIPLIER_DIVIDER

Published:2009/6/18 21:09:00 Author:May | From:SeekIC

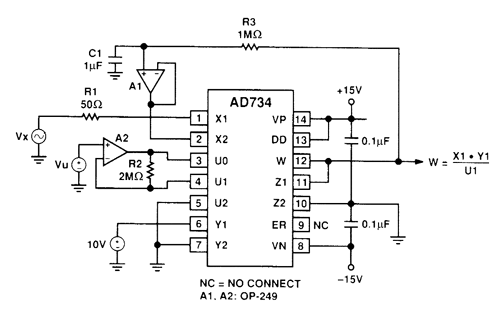

An output voltage (W=X1×Y1/U1) is produced by Lhis multiplier circuit The AD734 is a fourquadrant multiplier.
