CABLE_BOOTSTRAPPING

Published:2009/6/23 2:47:00 Author:May | From:SeekIC

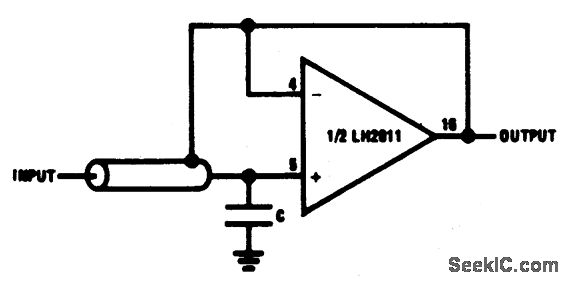

Bootstrapping input shield for a follower reduces cable capacitance, leakage, and spurious voltages from cable flexing. Instability can be avoided with small capacitor on input.
