CIGRETTE_LIGHTER_9_V_ADAPTER

Published:2009/6/19 2:18:00 Author:May | From:SeekIC

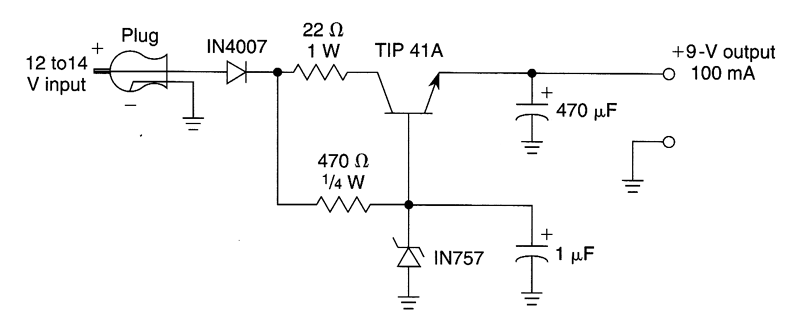

A simple way to provide +9 V at 100 mA from a 12-V auto source. Applications include small radios, cassettes, etc.
