CONTACT_DEBOUNCER

Published:2009/6/23 3:00:00 Author:May | From:SeekIC

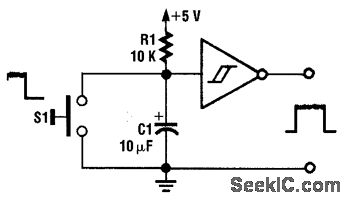

A contact debouncer using a Schmitt trigger, such as a TTL7414, provides a clean pulse from a switch contact closing.
