CRT_YOKE_DRIVER_

Published:2009/6/28 23:59:00 Author:May | From:SeekIC

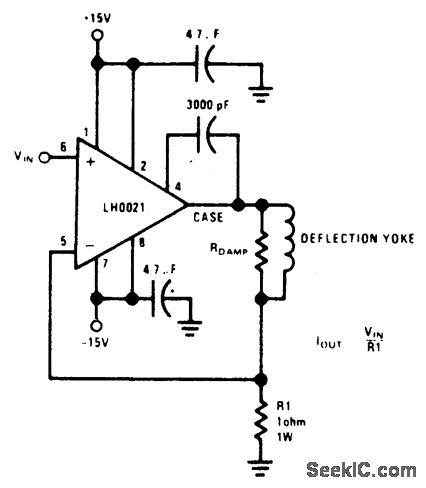

Circuit Notes A 500 mV peak-to-peak triangular waveform about ground is input to the amplifier，gtvmg rlse to a 100 mA peak current to theinductor，.
