CURRENT_LIMITED_6_V_CHARGER

Published:2009/7/9 5:44:00 Author:May | From:SeekIC

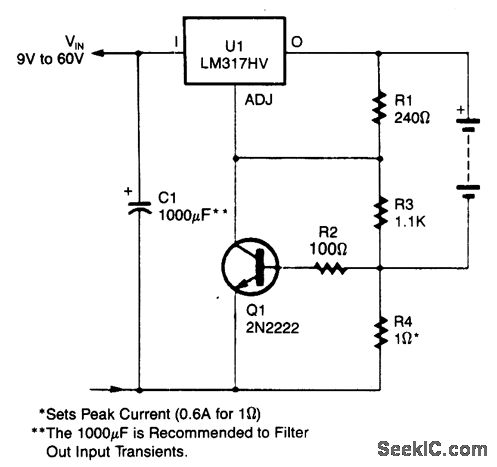

An LM317HV regulator is used as a current-limited charger. If current through R4 exceeds 0.6 A, Q1 is biased on, which pulls the ADJ terminal of the LM317 HV to ground and reduces the battery-charging current.
