Published:2011/5/17 9:10:00 Author:Robert | Keyword: Comparator | From:SeekIC

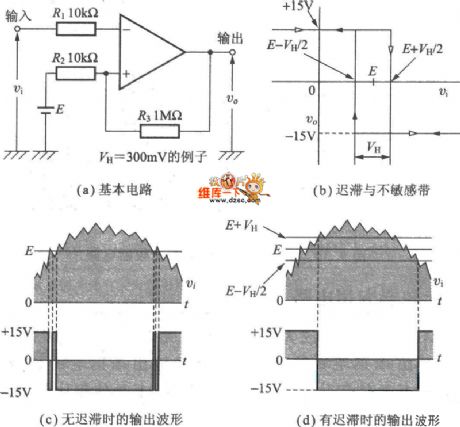

The Comparator Circuit is shown in the picture below. Picture (1) is basic circuit. Picture (2) is hysteresis and non-sensitive zone. Picture (3) is the output waveform with no hysteresis. Picture (4) is output waveform with hysteresis.
