HIGH_GAIN_JFET

Published:2009/6/29 2:38:00 Author:May | From:SeekIC

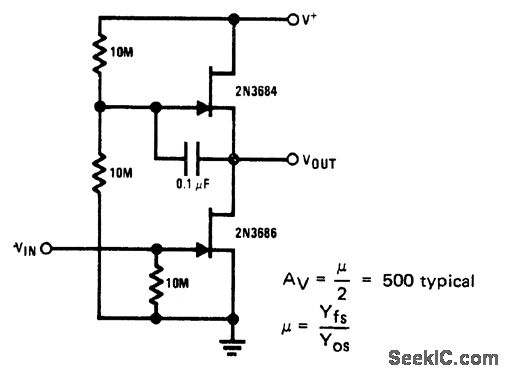

Simpletwo-JFET circuit provides gain of 500 at low power. Reducing drain cument increases gain at sacrifice of input dy-namic range.- FET Databook, National Semi-conductor, Santa Clara, CA, 1977, p 6-26-6-36.
