LA4585M-Signal chip playback integrated circuit

Published:2011/7/10 3:18:00 Author:leo | Keyword: Signal chip playback, complete function | From:SeekIC

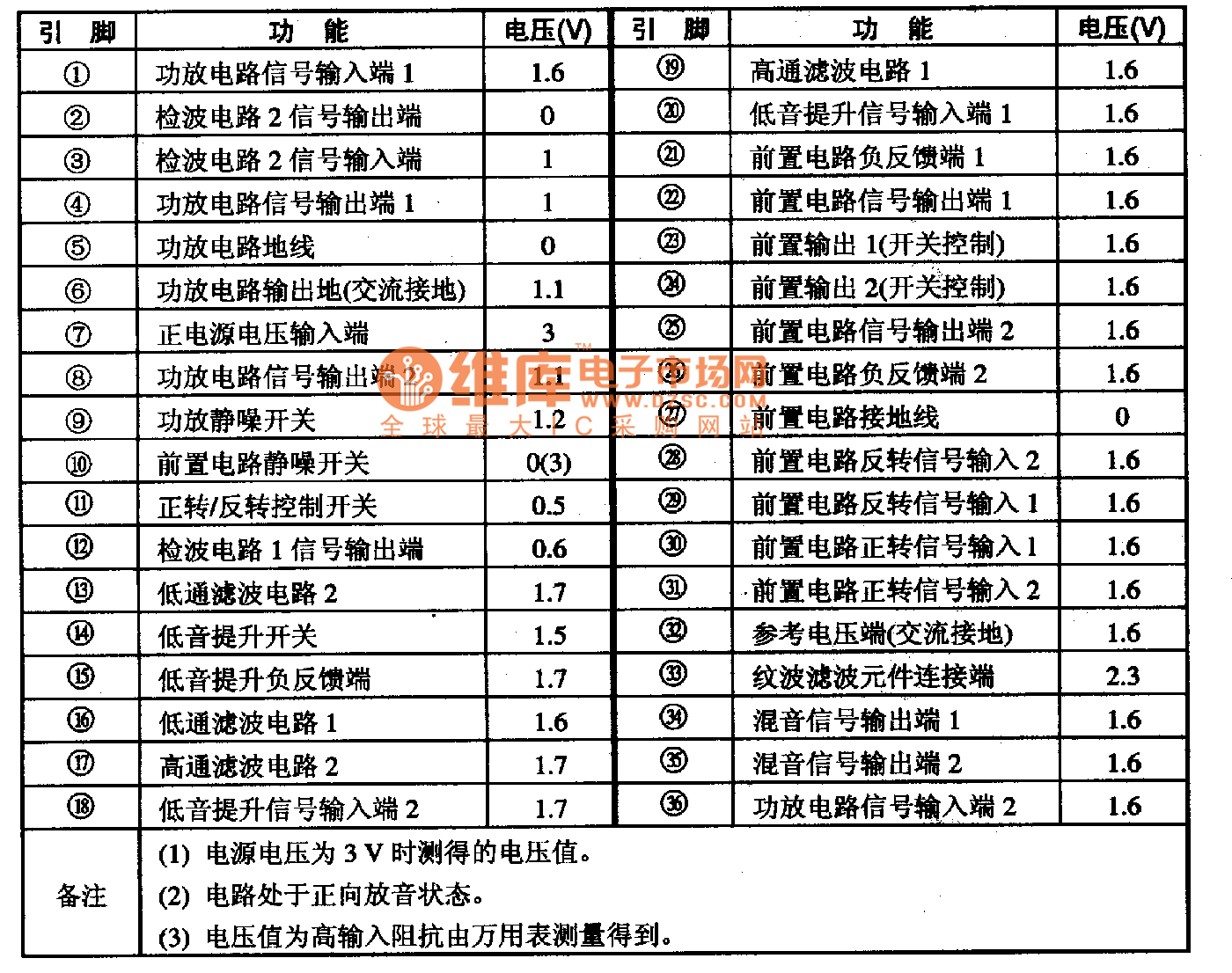

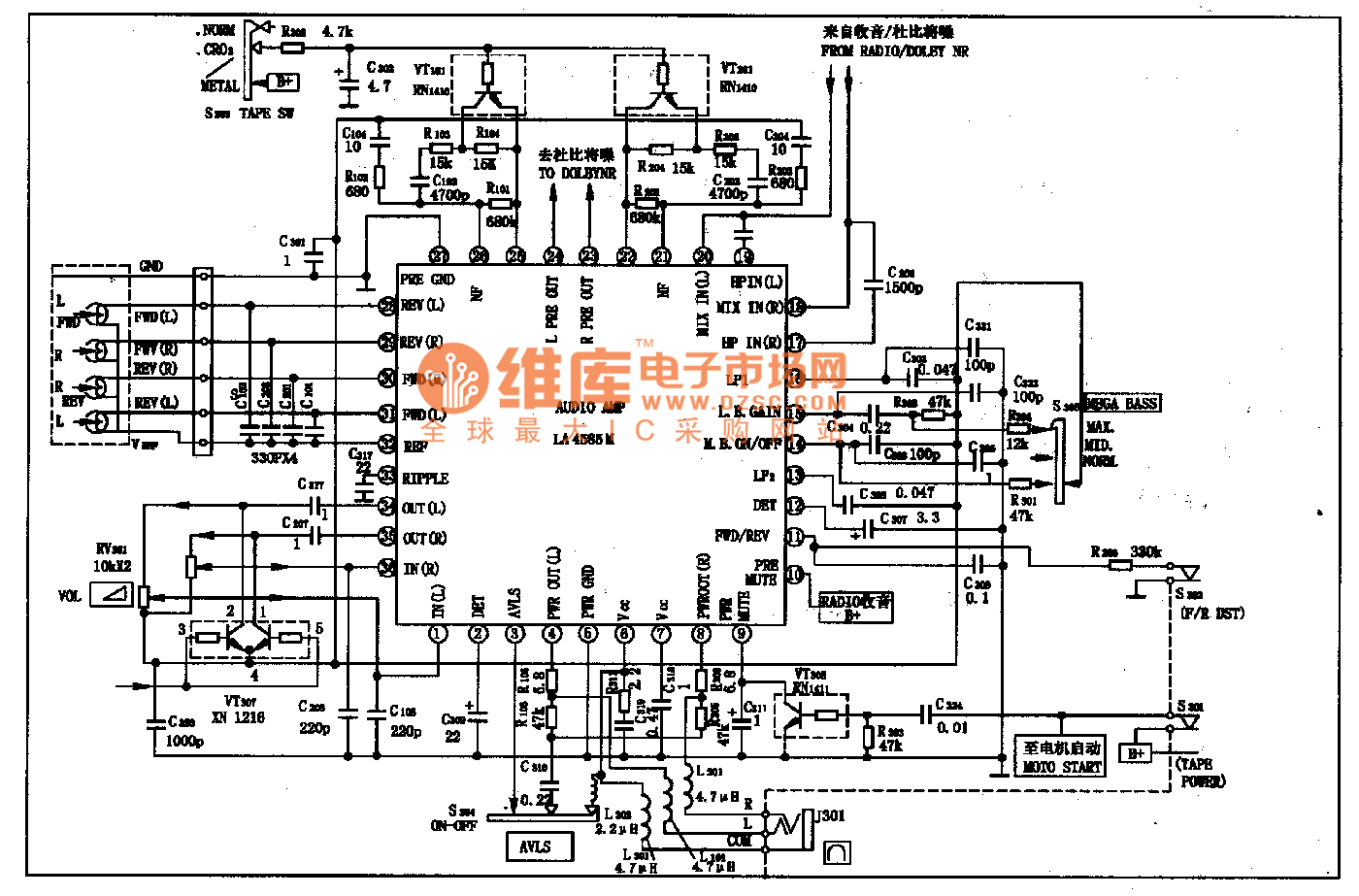

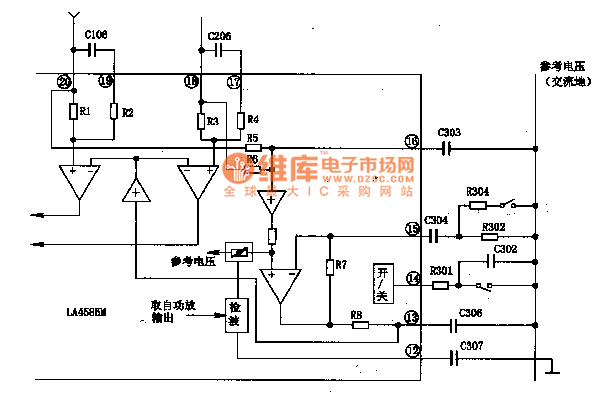

LA4585M is a type of signal chip playback integrated circuit produced by Sanyo Company. It has complete function and is widely used in Sony walk man and micro players. 1.Main functions:LA4585M contains dual channel fronted amplifier, dual channel power amplifier, system control circuit, bass improving circuit as well as peripheral circuit, such as auto reverse, audio source converting, dynamic audio source improving, auto volume limiting, noise control and other functions. LA4585M uses 36 pins package whose work voltage is 3 V and its pin functions are shown in the picture. 2.LA4585M classic applying circuit 3. Singal process
