LA7846N-Vertical scanning output thick-film integrated circuit

Published:2011/6/30 15:45:00 Author:leo | Keyword: LA7846N-Vertical scanning output thick-film integrated circuit | From:SeekIC

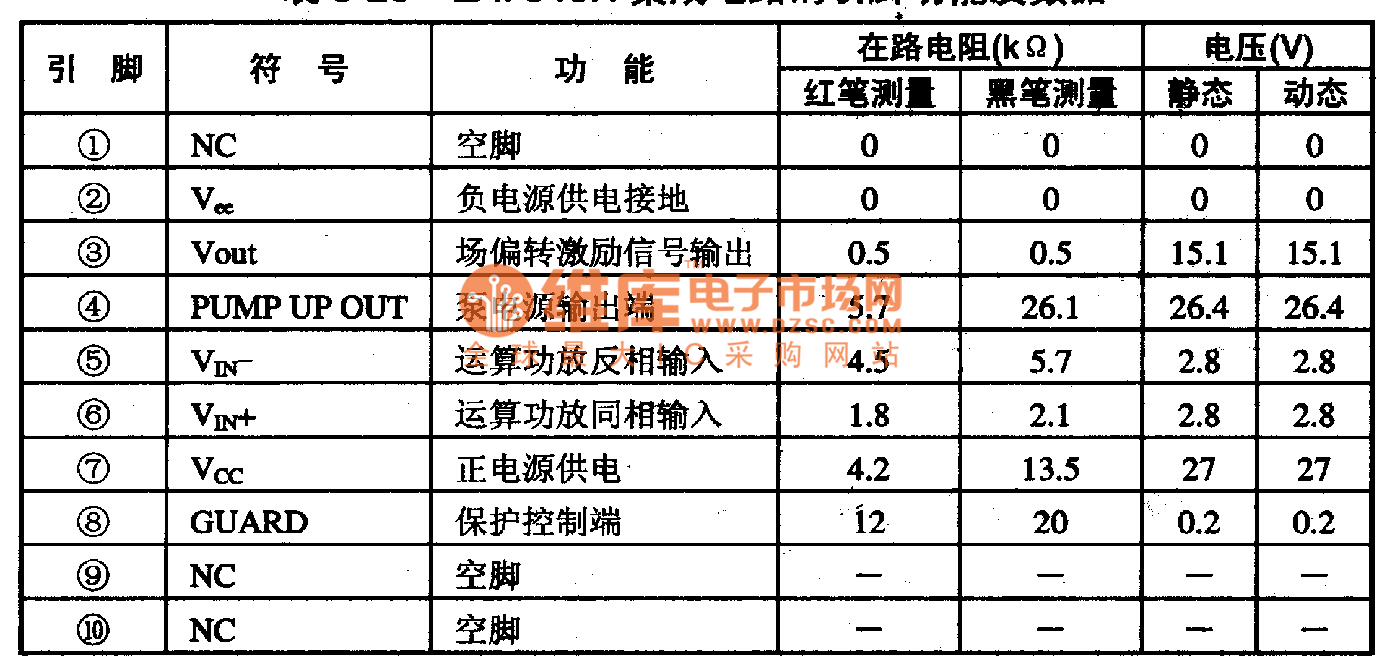

LA7846N is vertical scanning output thick-film integrated circuit which is widely used in big screen color television. Function features:The integrated circuit LA7846N contains field deflection urging circuit, field deflection power amplifier circuit, pump power supply circuit, protecting circuit and other related circuits. Pin functions and data:The integrated circuit LA7846N uses 10 pin single line package. Pin functions and data are shown in the picture.
