LOW_POWER_dc_DOUBLER

Published:2009/6/23 5:02:00 Author:May | From:SeekIC

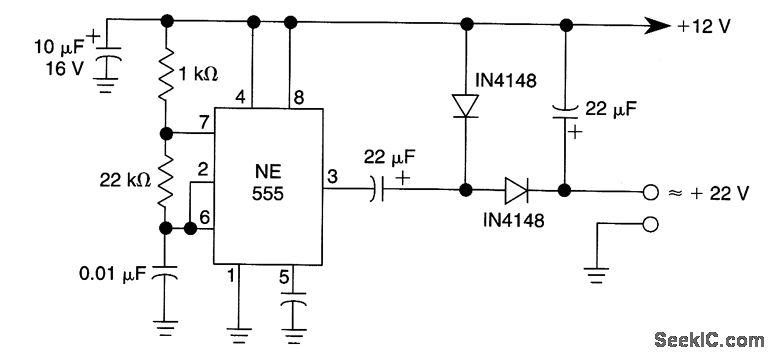

This dc voltage-doubler circuit based on the 555 can produce a dc output voltage equal to ap-proximately 2× the dc supply voltage.
