PASSIVE_MIXER

Published:2009/6/24 2:19:00 Author:May | From:SeekIC

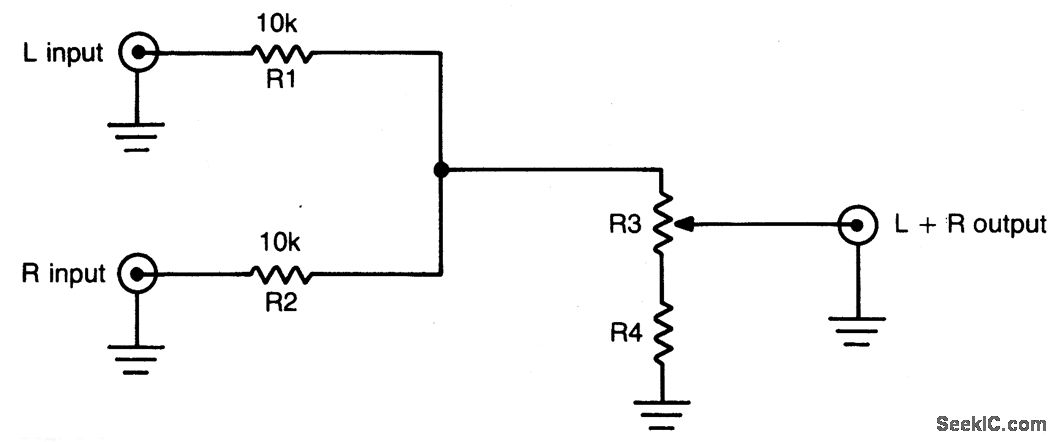

This simple circuit can be used to combine stereo signals to produce a mnaural output. R1 and R2 isolate both circuits and R3 controls the level of the combined output signal.
