POLARITY_PROTECTOR

Published:2009/6/24 3:13:00 Author:May | From:SeekIC

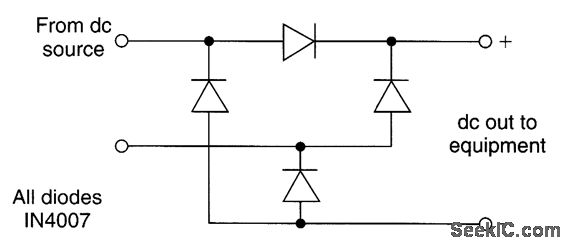

The use of a four-diode bridge guarantees correct polarity irrespective of input dc polarity. Remember that two diode drops (about 1.2 to 1.5 V) are lost from the input voltage using this circuit
