SHORTWAVE_FET_BOOSTER

Published:2009/6/26 4:26:00 Author:May | From:SeekIC

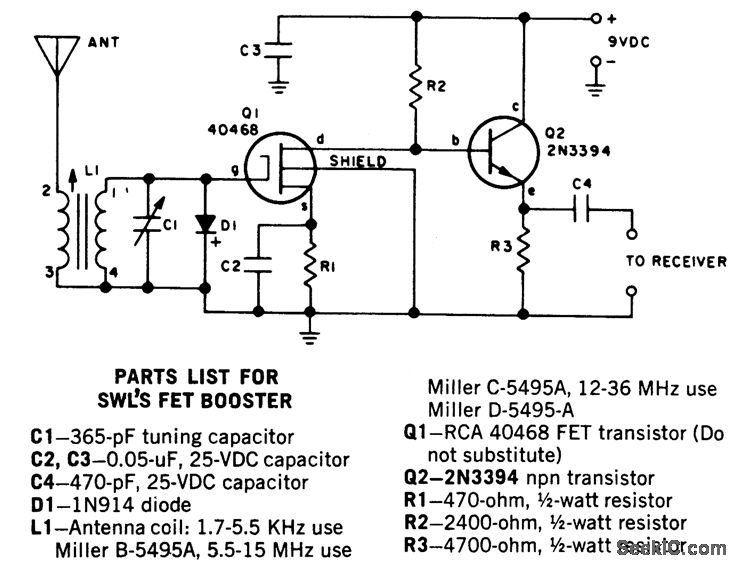

This two transistor preselector provides up to 40 dB gain from 3.5 to 30 MHz. Q1 (MOSFET) is sensitive to static charges and must be handled with care.
