TELEPHONE_RINGER

Published:2009/6/22 22:10:00 Author:May | From:SeekIC

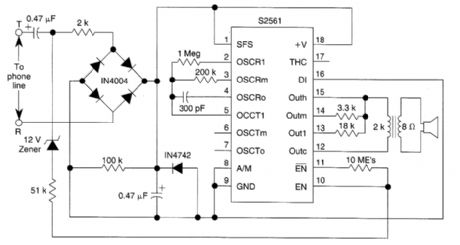

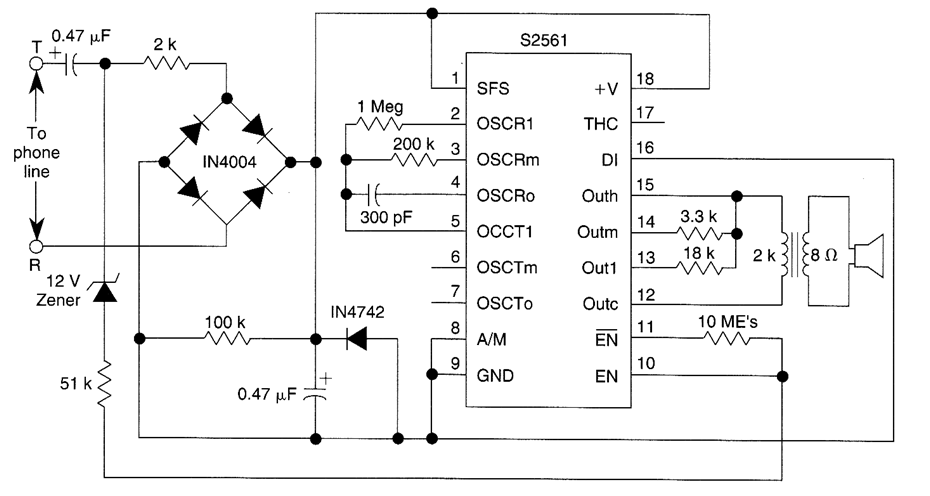

Using an AMI chip P/N S2561, this telephone ringer can be powered line. Audio output is about 50 mW when powered from a 10-V source.
