TLC5733MPM-A/D convertor integrated circuit

Published:2011/7/10 3:07:00 Author:leo | Keyword: A/D convertor, luminance signals processing circuit | From:SeekIC

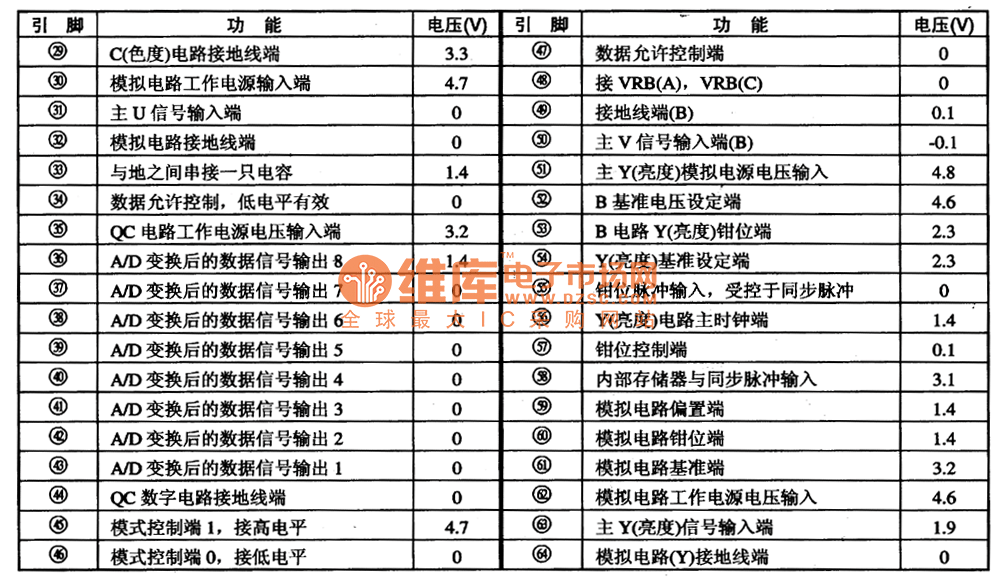

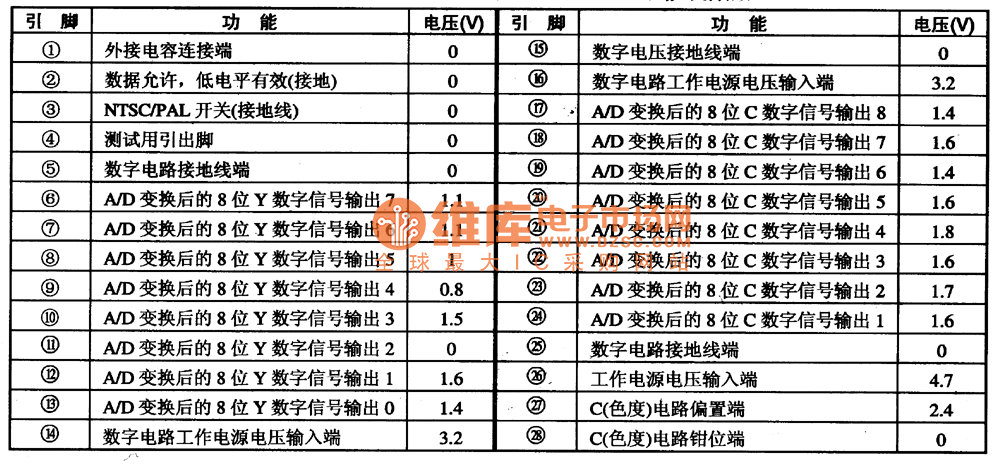

TLC5733MPM is a kind of A/D convertor integrated circuit produced by Toshiba. It is used to convert the A/D signals in the DTV. 1.Function features:The integrated circuit TLC5733MPM contains A/D converting 8 bits luminance signals processing circuit and 8 bits color signal processing solution circuit, memory circuit, mode control circuit, center U, V signal processing circuit, NTSC/PAL switch converting control circuit, main luminance signal processing circuit as well as other related circuit. 2.Pin functions and related data:TLC5733MPM adopts 64 pins dual line package. Its functions and related data are shown in the picture.
