The typical application circuit of Darlington

Published:2011/12/1 2:17:00 Author:Ecco | Keyword: typical application circuit , Darlington | From:SeekIC

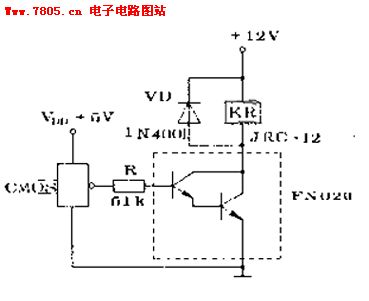

1. It is usedfor high-power switching circuits , motor speed adjusting and inverter circuit .2. It is used todrive a small relayItuses CMOS circuit Darlington circuit to drive high- sensitivity relay , and the circuit is shown in Figure 1. Thelow-power NPN Darlington FN020 is shown in dotted line block.
