Typical Applied Circuit of M52340SP IC

Published:2011/5/10 19:32:00 Author: | Keyword: IC, Applied Circuit | From:SeekIC

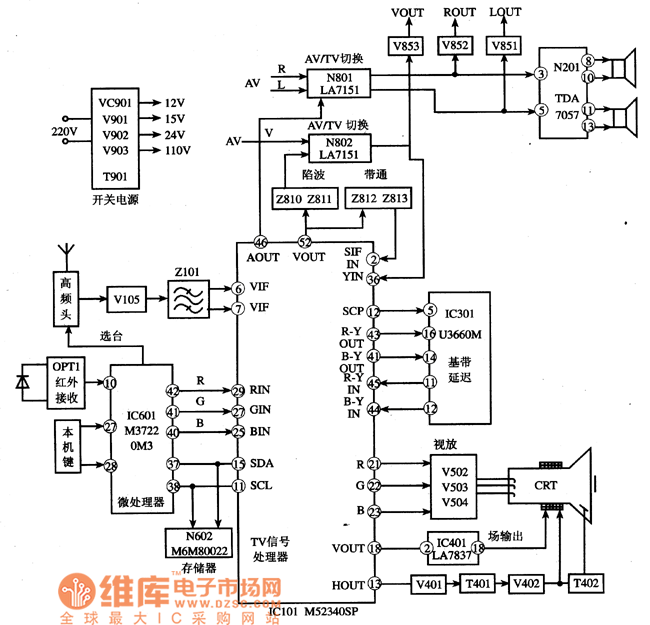

Typical Applied Circuit The typical applied circuit of M52340SP IC is demonstrated as the abboved picture.Konka F2136 color TV is a typical application example. Picture:Typical Applied Circuit of M52340SP IC Note:Ifboth image and sound accompaniment go wrong meanwhile ,we shuold check 38MHz intermediate sequancy signal which is high sequancy singalat first but changed into intermediate then whether it is added to⑥ and ⑦ feet.The M52340SPcircuit will be checked if the signal is normal.
