Application Circuit Design of Fuji IGBT Intelligence Module

Published:2011/8/22 21:15:00 Author:muriel | Keyword: Fuji IGBT, Intelligence module , application circuit design | From:SeekIC

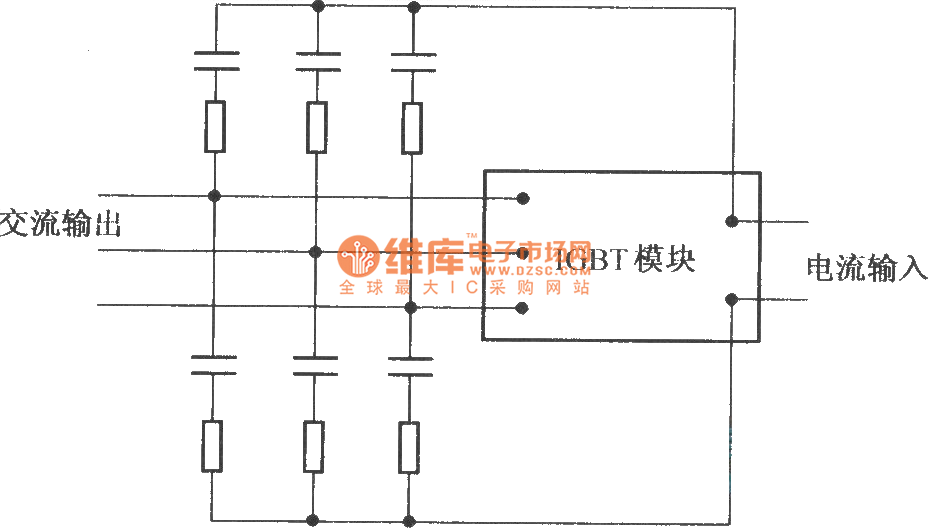

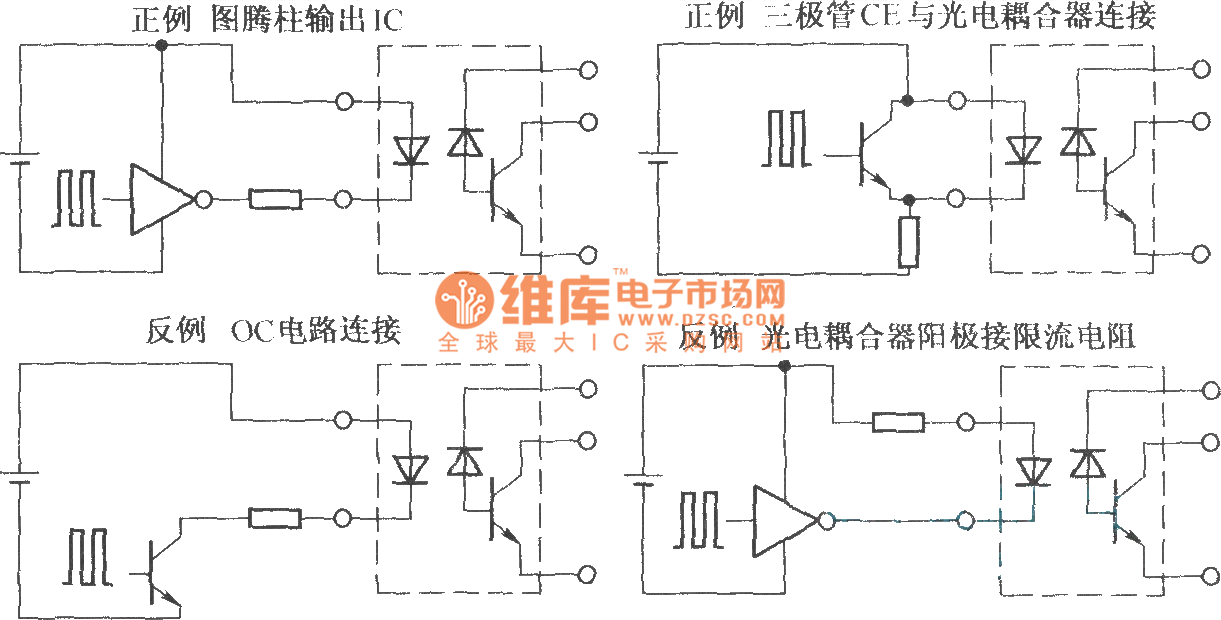

1.Photoelectric coupler drive circuit Peripheral control circuit mainly aims at the single-chip control system of weak current control part, because the IPM module directly connects the distribution system, therefore, it must use segregation device to isolate the IPM module and the weak current circuit of control part, to protect the single-chip microcomputer control system. Meanwhile, the working conditions of IPM module depend largely on the right, effective and timely control signals. So,itdesigns a fine photoelectric coupler control circuit, whichis also the key to work normally IPM module, and it isshown as the chart. 2.Buffer circuit
