Audio Signal Detector Switch

Published:2012/9/10 20:26:00 Author:Ecco | Keyword: Audio Signal, Detector, Switch | From:SeekIC

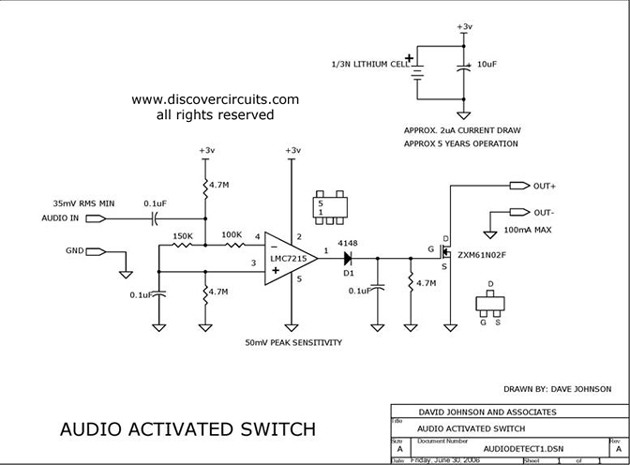

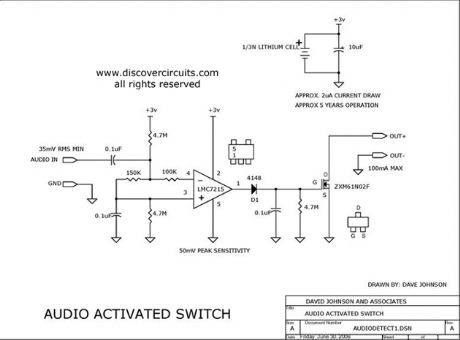

This circuit will activate a transistor switch when it detects at least 50mv peak to peak of an audio signal. It could be used to turn on a relay, routing the signal to were it is needed. Source: discovercircuits
