Automatic counter composed of the TX05D

Published:2011/8/24 21:52:00 Author:Christina | Keyword: Automatic counter | From:SeekIC

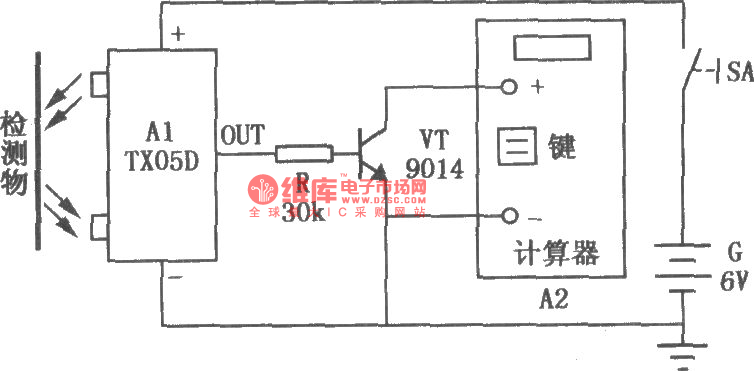

The automatic counter is composed of the TX05D and the pocket calculator. As the figure shows, it can be used in the product automatic counting of the factory production line conveyor belt, the transformer winding circle number automatic counting and the equipment movements automatic counting.
