BA3106 fan single chip microcomputer integrated circuit

Published:2011/6/22 9:07:00 Author:Christina | Keyword: fan, single chip, microcomputer, integrated circuit | From:SeekIC

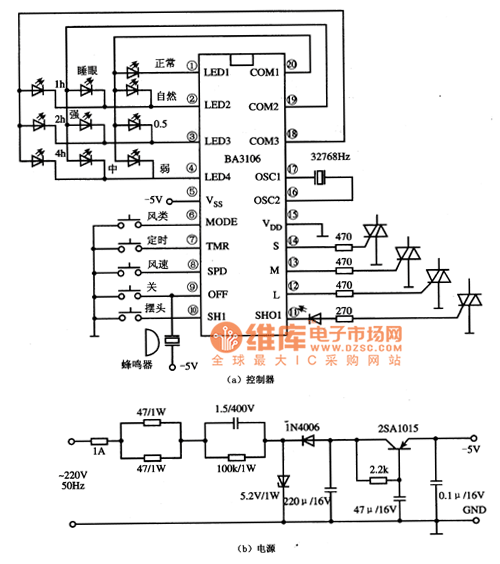

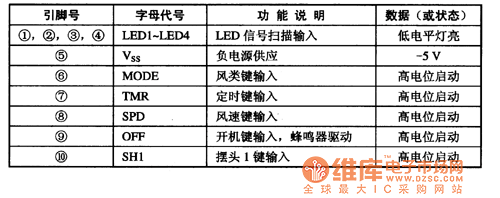

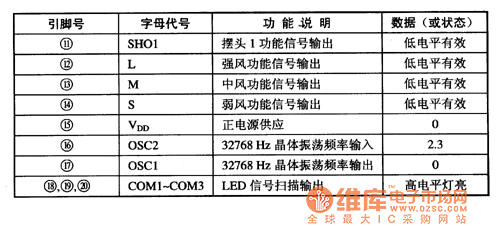

The BA3106 is designed as one kind of fan single chip microcomputer integrated circuit which is produced by the Toyo company, and it can be used in all kinds of fan control program circuits. The BA3106 uses the 22-pin dual-row DIP package, the typical application circuit is as shown in figure 1, the pin functions and data are as shown in table 1. Figure 1 The typical application circuit of the BA3106 Table 1 The pin functions and data of the BA3106
