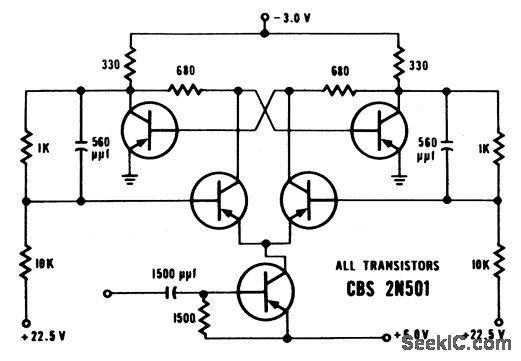

BASE_GATED_BINARY

Published:2009/7/14 4:03:00 Author:May | From:SeekIC

Input counting rate is up to 70 Mc. Saturating transistor gale minimizes turnoff and turnon delay. Flip-flop transition is completed in less thon 16 mil-limicrosec.-High-Speed Switching Transistors (CBS Electronics ad), Electronics, 33:39, p 45.
