BASIC TRACK CIRCUIT

Published:2013/6/21 2:59:00 Author:muriel | Keyword: BASIC TRACK CIRCUIT | From:SeekIC

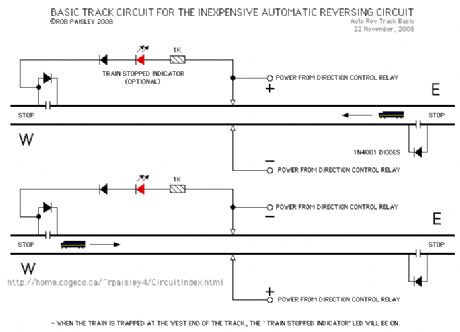

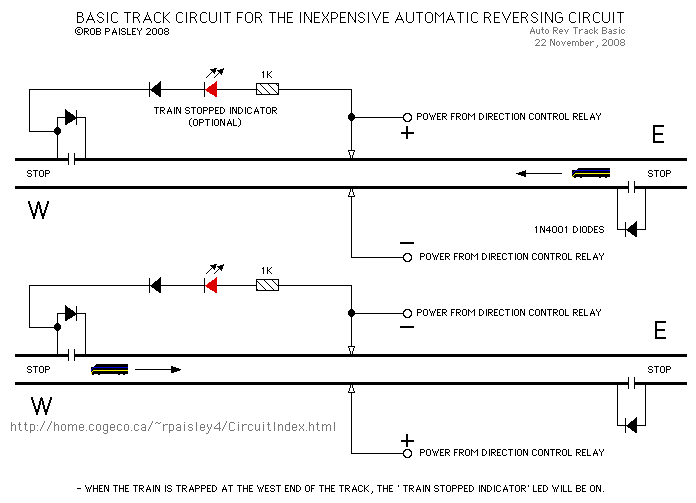

The basic track circuit provides continuous back and forth operation of the train with diodes and gaps to stop the train at each end of the track.Also shown is an optional LED that will show when the train has been trapped at the end of the track.
