BEAM_SWITCHING_DECADE

Published:2009/7/14 4:06:00 Author:May | From:SeekIC

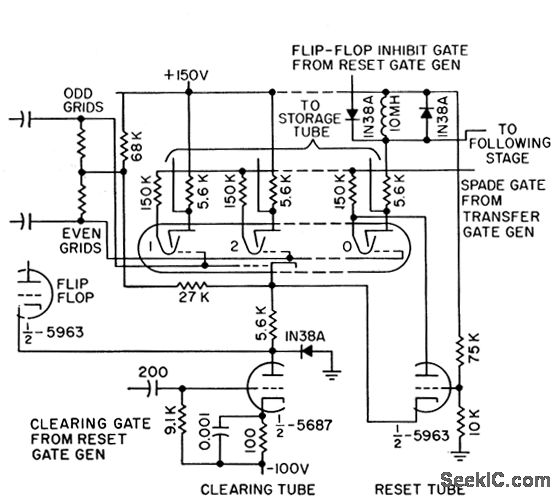

Counter is cleared when reset tube cuts off series triode in cathode of beam-switching tube. Circuit presents high impedance to initiating gate, as required for resetting several decades.-R. W. Wolfe, Decade Decimal Counter Speeds Printed Read.out, Electronics, 31:3, p 88-90.
